FH-R150

The FH-R150 module is our all-rounder.

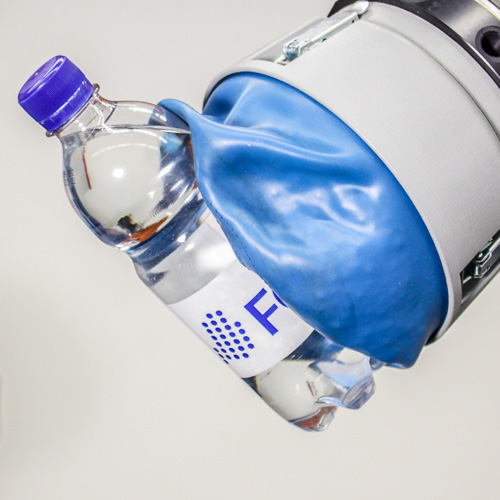

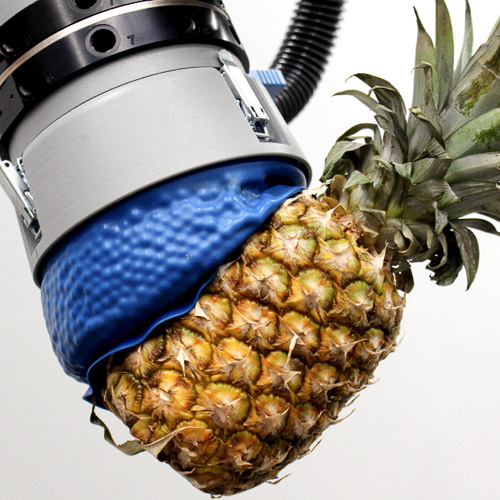

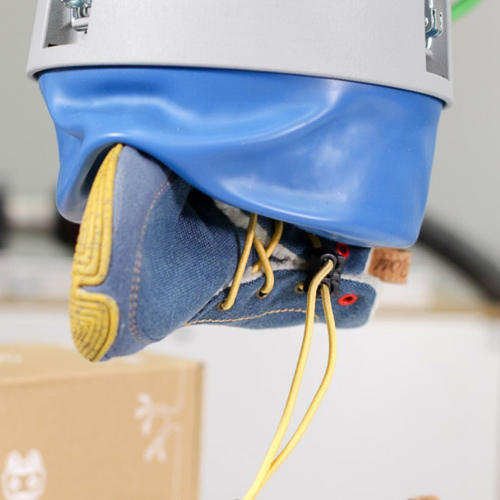

It consists of a frame and a gripping pad with a diameter of 150mm. It succeeds in gripping several different and complex objects. The magic is in the gripping pad: it is filled with a freely movable granulate and thus adapts to any surface. The adaptation takes place gently and thus ensures true shape variability.

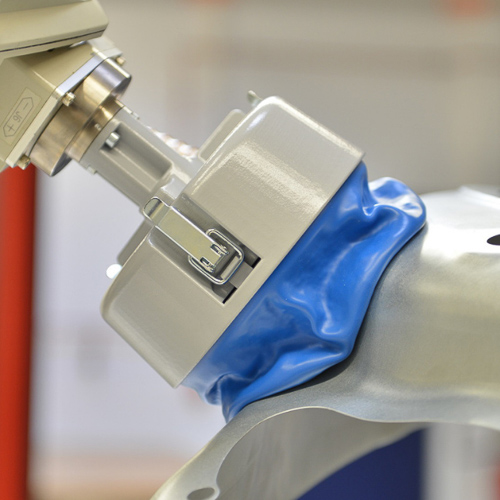

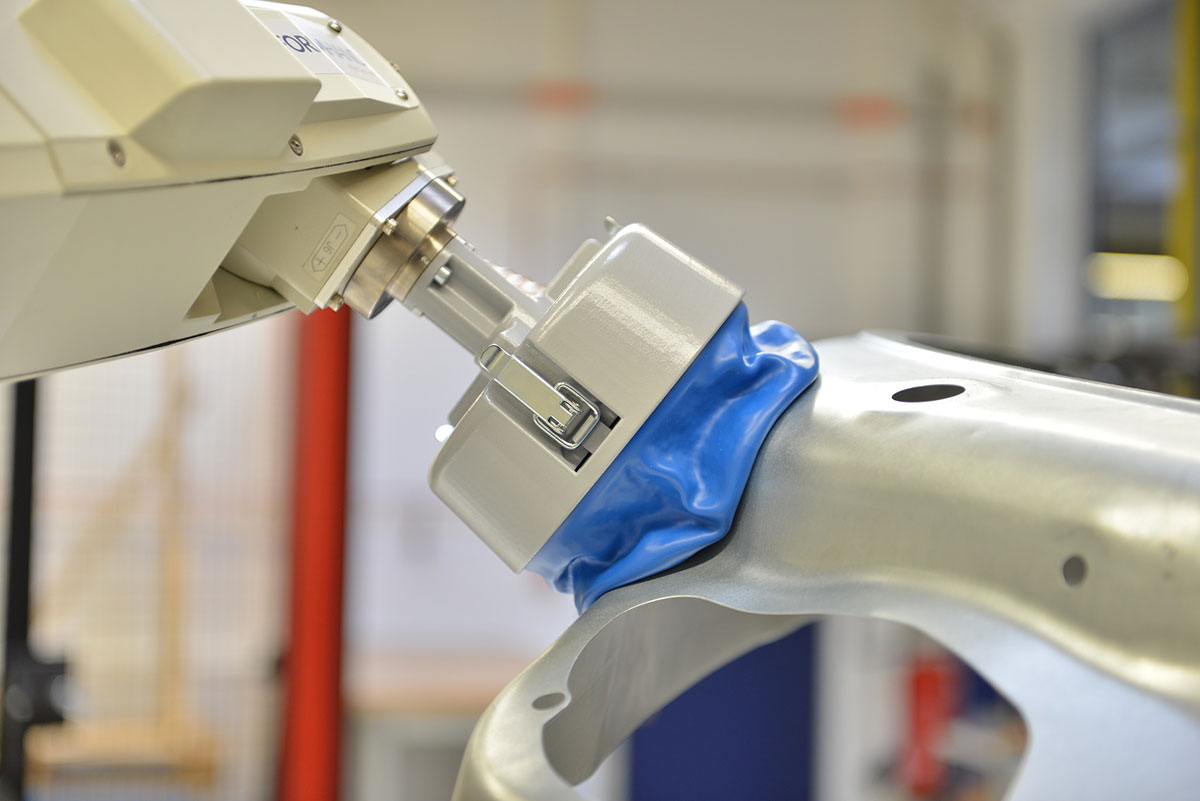

Other companies use the FH-R150 module in their production systems or in intralogistics to save costs by reducing special grippers and set-up times. The gripping pad can be filled with different granulates and can thus be configured for specific applications.

Our Allrounder lifts dynamically up to 8kg.

Your investment in our allrounder for gripping, clamping and chucking:

  • Gripping module FH-R150: 2.633,00 €
  • Greifmodul FH-R150 im FORMHAND-Bundle: 10.546,00 €

If the gripping pad of the FH-R150 is too large, discover the FH-R80.

If the gripping pad of the FH-R150 is too small, discover the FH-E3020.







Product Features & Equipment

Interchangeable pad package
  • Round gripping pad, diameter 150 mm
  • Pad height/mold depth of approx. 65 mm
  • Maximum gripping force of 80 N
  • Change of pad package without tools
Self-adjusting & two-dimensional gripping
  • Granulate-filled gripping pad freely formable
  • Gripping force acts on the entire covered area
  • Installation instructions available
  • Leakage tolerant and gentle gripping
  •
available peripherals and equipment
  • Blowers in various performance classes
  • Valve and filter equipment
  • Tube packages with connections
  • Adapters for quick assembly
